Sensitivity: 84dB (2.83V/1m)
IEC power handling: 160W
Impedance: 6 Ω
Frequency response (±3dB): 47Hz–23kHz

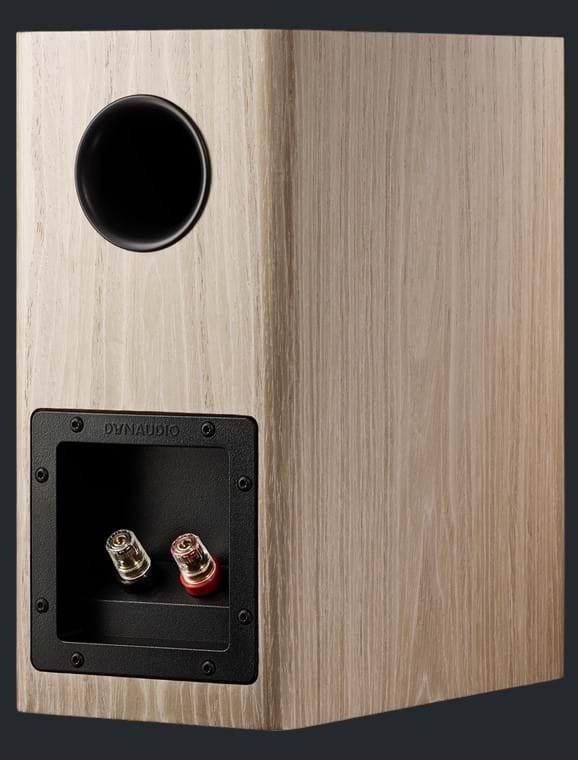

Box principle: Bass reflex rear ported
Crossover: 2-way
Crossover frequency: 1400Hz
Crossover topology: 2nd order
Specification sheet for Evoke part 1
Woofer: 14cm MSP cone
Tweeter: 28mm Cerotar with Hexis
Weight: 6.7kg/14.8lb
Dimensions (W x H x D): 180x315x266mm
7.1x12.4x10.5in
Dimensions with feet/grille (W x H x D): 180x315x277mm
7.1x12.4x10.9in
