Sensitivity: 86dB (2.83V/1m)
IEC power handling: 180W
Impedance: 6 Ω
Frequency response (±3dB): 40Hz–23kHz

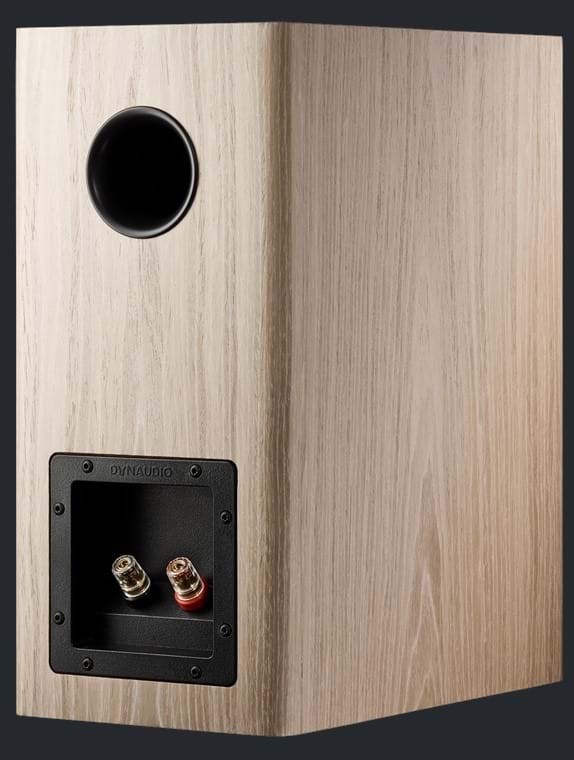

Box principle: Bass reflex rear ported
Crossover: 2-way
Crossover frequency: 3200Hz
Crossover topology: 2nd order
Specification sheet for Evoke part 1
Woofer: 18cm MSP cone
Tweeter: 28mm Cerotar with Hexis
Weight: 9.9kg/21.8lb
Dimensions (W x H x D): 215x380x307mm
8.5x15.0x12.1in
Dimensions with feet/grille (W x H x D): 215x380x317mm
8.5x15.0x12.5in
